TUV RoHS H1z2z2K UV Resistant -40 Degree 4mm PV Solar Cable Red and black 100m

Product description

Single conductor, insulated and non-integrally jacketed, sunlight resistant, photovoltaic wire rated for 90°C wet or dry, 600V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 630.31 (And other applicable parts of the National Electric Code (NEC), NFPA 70). Ratings only apply to certain gage sizes.

Technical Data

--Temperature Rating: -40°C to 90°C
--Conductor AWG: 12 to 2000 AWG
--Conductor Material: Soft Annealed tinned stranded copper, per ASTM B-33 and EN 60228
--Separator: Paper Tape
--Insulation Material: XLPE Halogen-free, thermoset, polyolefin specifically, designed for maximum, flexibility
--Jacket Material: Sunlight-Resistant PVC Black, low smoke, non-halogenated,flame retardant, oil, abrasion, chemical and sunlight resistant cross-linked compound meeting UL 44, UL 854
--Min. Bend Radius: 8x Diameter

Application :

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.

(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

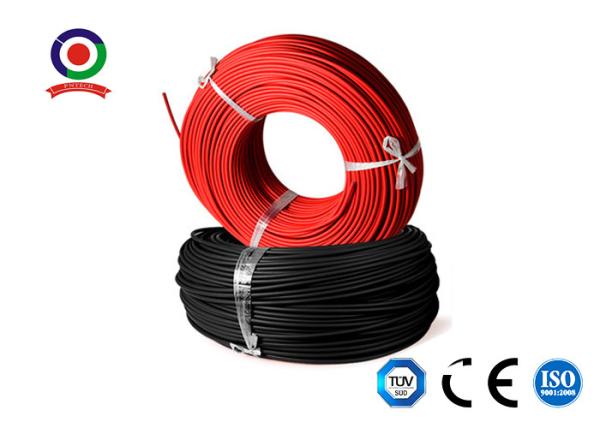

Picture of 4mm PV solar cable
