Flexible Solar Panel Connection 3m 4mm2 Solar Cable Extension with
Connector
Solar cable Description
Cable description:
56/.285 (4.0mm2) Tinned Annealed Copper
XLPE Insulated. 0.6/1KV core.
630/1050Vdc SOLAR Cable oversheathed with XLPE
Oxygen Free Copper. RoHS Compliant XLPE
Condoctor:
56 Strands of 0.285mm nom. Tinned Annealed Copper , drawn
from Class 110A Copper to AS1574
Max D.C. resistance at 20C : 5.1 ohms / km
INSULATION
Black XLPE type
Nominal Diameter : 4.6mm
Nominal Wall Thickness : 1.0mm
Minimum at any point : 0.8mm
OVERSHEATH
Black XLPE type
Nominal Diameter : 5.9mm
Nominal Wall Thickness : 0.9mm
Talc Barrier Between Insulation And Oversheath
| Type | Cross | Strand | Conductor | Conductor | Outer | Rated | Rated | Weight |
| section | design | diameter | resistance | diameter | voltage | current |
| mm² | No.x ø (mm) | mm | Ω /km | mm | VAC/DC | A | Kg/km |
| PV-1*1.5 mm² | 1.5 | 30x ø 0.25 | 1.6 | 13.5 | 4.8 | 1000/1800 | 30 | 35 |
| PV-1*2.5 mm² | 2.5 | 50x ø 0.25 | 2.0 | 8.21 | 5.3 | 1000/1800 | 41 | 50 |
| PV-1*4.0 mm² | 4.0 | 56x ø 0.285 | 2.6 | 5.09 | 6.1 | 1000/1800 | 55 | 70 |
| PV-1*6.0 mm² | 6.0 | 84x ø 0.285 | 3.3 | 3.39 | 7.1 | 1000/1800 | 70 | 95 |
Connector
1. Connector adopts touch of reed with inne-knob type.
2. Auto-lock enable connection more easy and reliable.
3. Popular figure suit most of field installation.
4. Quickly to connector.
5. Water proof and prevent dust.
6. Long life.
| Rate voltage: | 1000v |
| Rated current: | 22A(2.5mm2) , 30A(4mm2,6mm2) |
| Test voltage: | 6KV(50Hz) |
| Protect degree: | IP67/IP2X |
| Insulation material: | PC/PA/PPO/TPE |
| Contact material: | Silver plated copper |
| Operating temperature: | -40°C~+90°C |
| Safe class: | 2 |
| Flame class: | UL94-V0 |
| Contact resistance of plug connectors: | ≤5mΩ |
| Insertion force: | ≤50N |
| Withdraw force: | ≥50N |
| Suitable cable: | 2.5mm2/4mm2/6mm2(AWG14/12/10) |
| Locking system: | Snap in |
| Product No. | DC-DC |
| Rated voltage | TUV 1000V DC |
| Rated current | 30A |
| Suitable cable cross sections | 2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG |
| Terminal size | Φ4.0mm |
| Test voltage | DC 8KV 1min |
| Pollution degree | 2 |
| Protection class | Class II |
| Terminal Material | Tinned copper |
| Contact resistance | ≤ 5mΩ |
| Insulation Materials | PPC |
| IP rating | IP67(IEC 60529) |
| Pull-out force | ≥ 50N |
| Insertion Force | ≤ 50N |
| Test temperature | -40ºC~ +85ºC |
| Flame Class | UL94V - 0 |
Assembly Instructions
During self assembly ,parts and tools other those stated are used
or if the preparation and assembly instructions described here are
disregarded then neither safety nor compliance with the technical
data can be guaranteed.
For protection against electric shock ,PV Connectors must be
isolated from the power supply while being assembled or
disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged
while under load.They can be placed in a no load state by switching
off the DC/AC converter or breaking the AC circuit
interrupter.Plugging and unplugging while under voltage is
permitted
Disconnected connectors should be protected from dirt and water
with sealing caps.
Plugged parts are watertight IP67
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent
intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c
to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to
get the price, please call us to give complete specifications about
the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to
the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

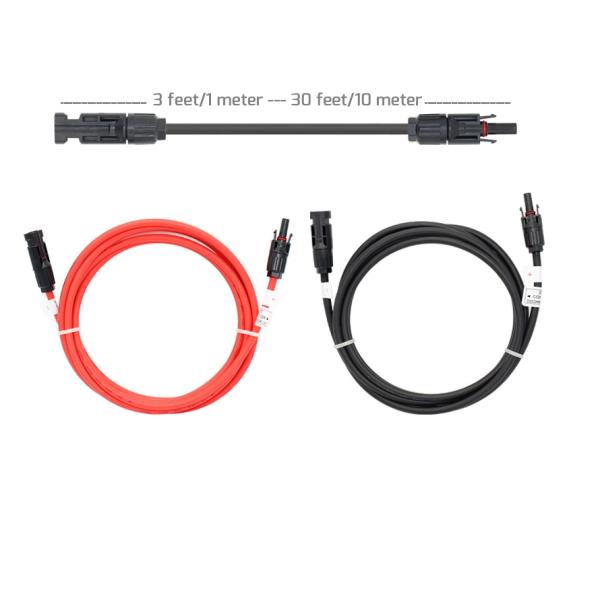

Picture of Solar Extension Cable 4mm2
